Architecture Overview

CASA has two main layers: a runtime that manages identity and policy, and a data plane that enforces those policies at runtime.

Global Architecture

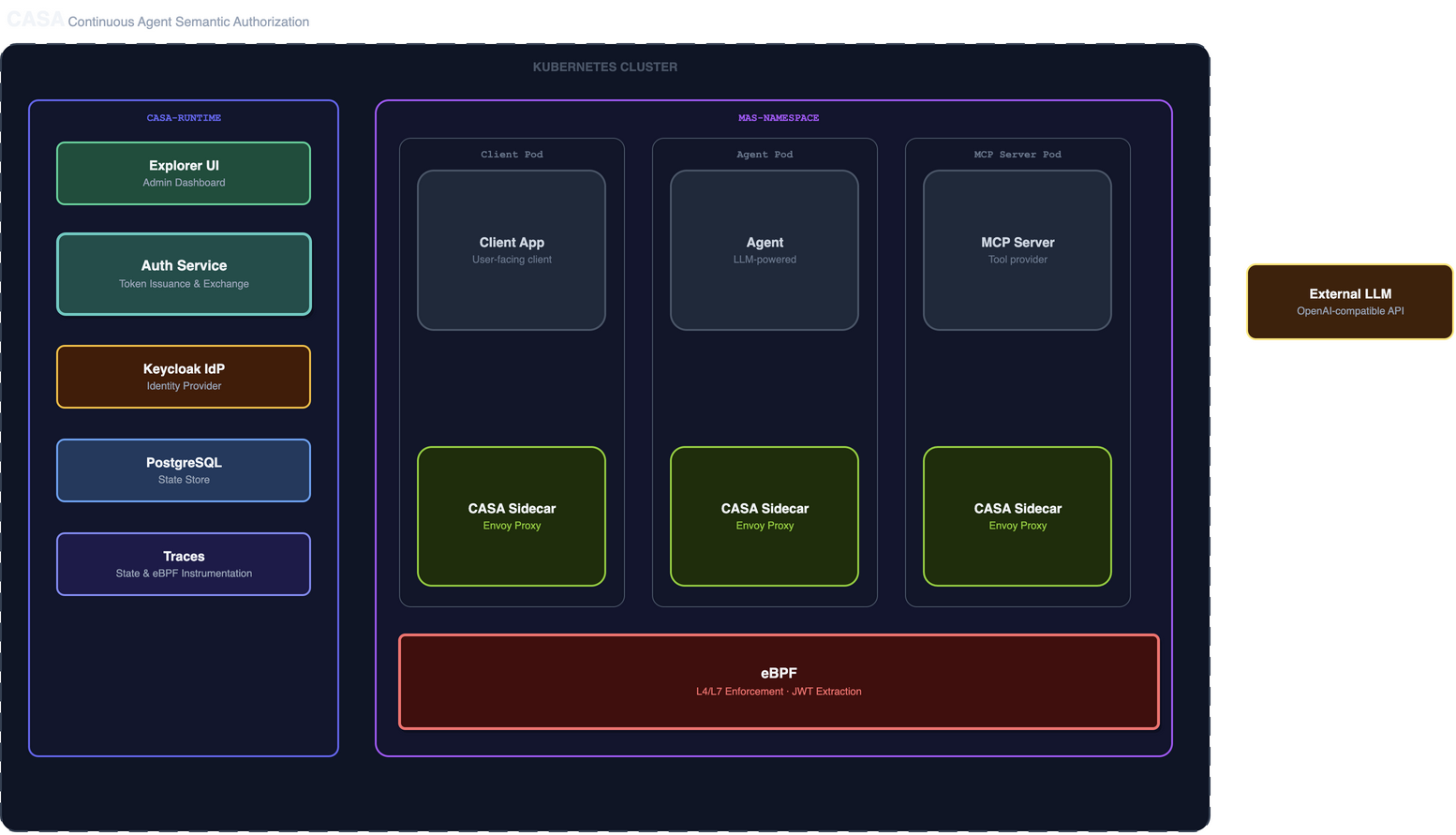

Components

Component Summary

Runtime

The runtime runs in the casa-runtime namespace and handles:

• Token issuance — OAuth2 client credentials flow (initial token for user input)
• Token exchange — RFC 8693 token exchange for delegated, scope-limited tokens
• Token introspection — validates tokens presented by sidecars
• Tool check orchestration — runs deterministic and/or AI-powered checks on token exchange requests
• MAS lifecycle management — reads MultiAgentSystem and CASAPolicy CRDs, reconciles application state

See Runtime for full details.

CASA Sidecar

Every pod in a CASA-managed namespace gets an Envoy-based sidecar injected automatically. The sidecar:

• Intercepts all inbound and outbound HTTP traffic via iptables rules
• On egress: requests or exchanges tokens, injects Authorization header
• On ingress: introspects presented tokens, allows or denies the request
• Caches introspection results (30s TTL) to reduce runtime load
• Enforces protocol restrictions (MCP, A2A only — no arbitrary HTTP)

See CASA Sidecar for full details.

eBPF Enforcement Layer

The eBPF enforcement layer operates at the kernel level on eBPF-enabled Kubernetes nodes (kernel 5.8+), independently of the CNI. It provides:

• Deny-by-default — traffic enforcement via eBPF programs or network policy
• LLM endpoint restriction — agents can only reach a single approved external FQDN
• JWT extraction — eBPF programs extract and hash JWTs from HTTP headers for observability
• Flow logging — real-time flow logs correlated with token metadata

In Istio mode, eBPF enforcement uses the node kernel and is available when nodes have eBPF enabled. The Cilium deployment mode (roadmap) provides a fully integrated eBPF + sidecar solution via the Cilium daemonset.

See eBPF Enforcement for full details.

Traces

The Traces component persists all domain event traces and correlates them with eBPF flow data:

• State persistence — stores token issuance, exchange, and tool check records in PostgreSQL
• eBPF instrumentation — receives JWT/flow events from the eBPF layer and correlates them with token metadata
• Query API — exposes trace data consumed by the Explorer UI

See Traces for full details.

Deployment Modes

CASA supports two dataplane options:

Mode	Sidecar Injection	L7 Enforcement	L4/L7 + eBPF	Status
Istio	Istio automatic injection	ext_authz_middleware (Go)	eBPF (node kernel)	Current
Cilium	Node-level daemonset	CASA sidecar (Envoy + Lua)	CASAPolicy + eBPF (integrated)	Coming soon (Roadmap)

See Deployment Modes for setup guides.

Trust Model

CASA operates on a layered trust model:

1. eBPF / L4-L7 — deny by default; only known endpoints may communicate
2. Sidecar / L7 — every request must carry a valid, non-expired token with correct scope
3. Control plane — token exchange validates that the requested tool matches the original user intent

No layer alone is sufficient. Compromise requires breaking all three.
